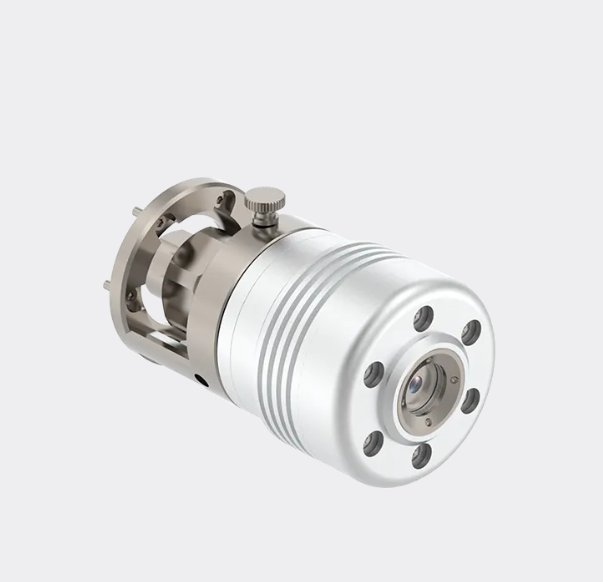

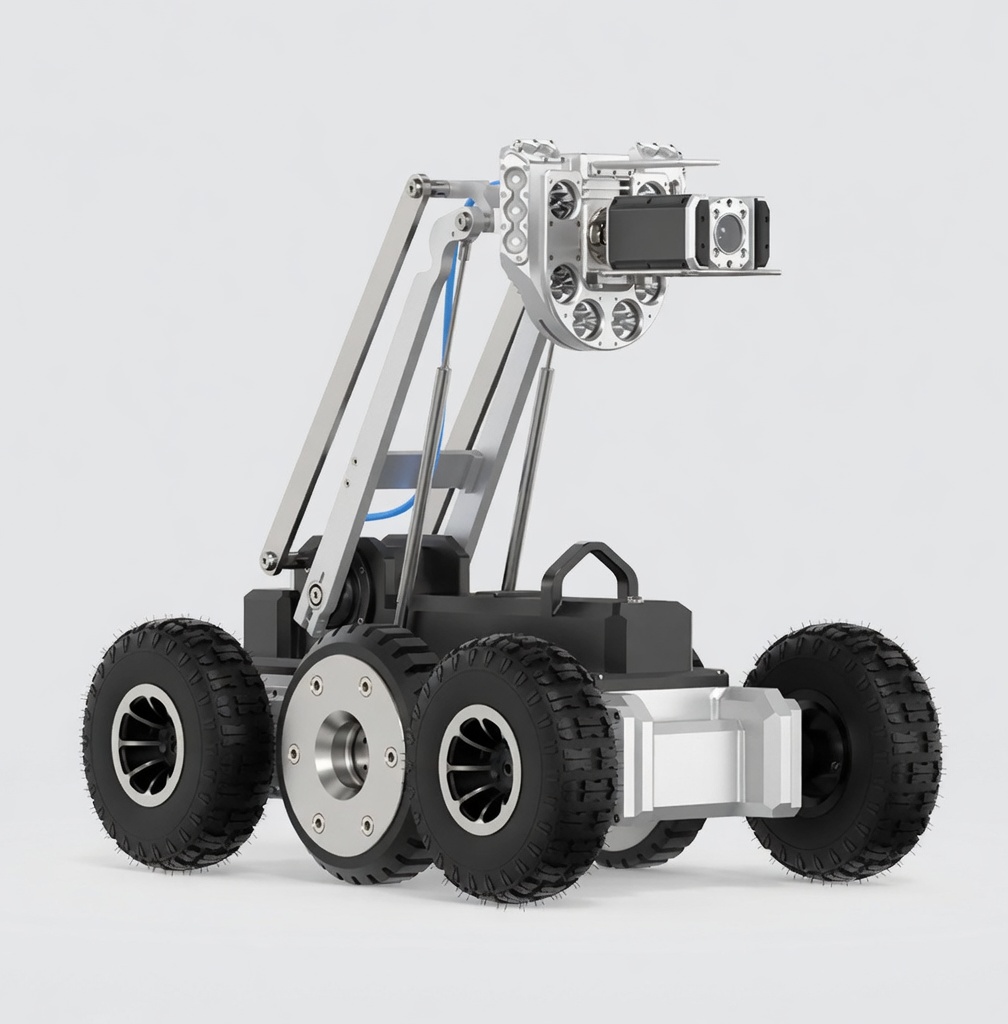

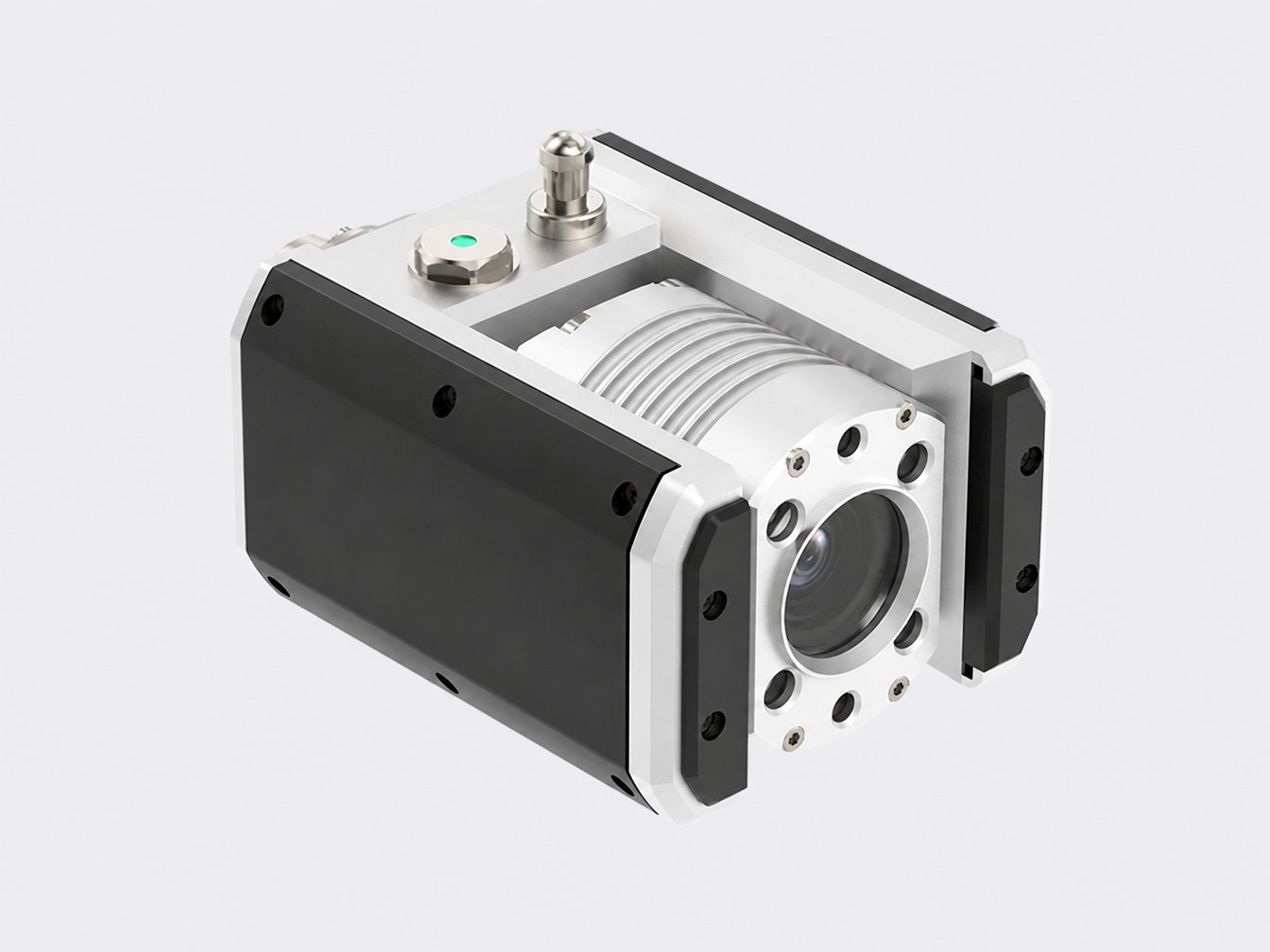

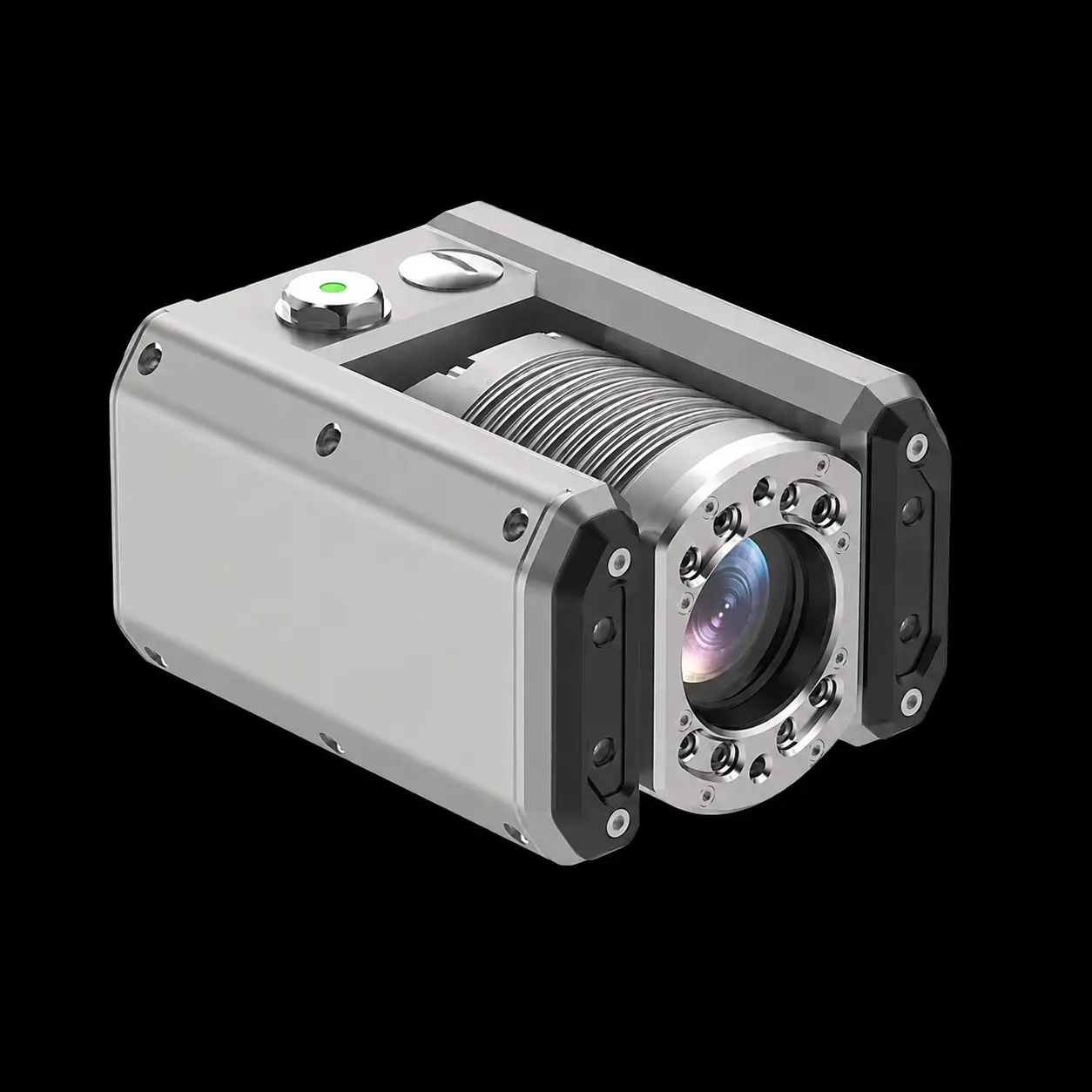

Standard HD P&T Camera
| Inspection | 10× optical zoom · 360° pan · ±90° tilt |
| Laser Measurement | Up to 10 m |
| Protection | IP68 · up to 10 m depth |
| Connection | Quick-change push-pull connector |
Professional Crawler · Compact Series
DP ROBOT

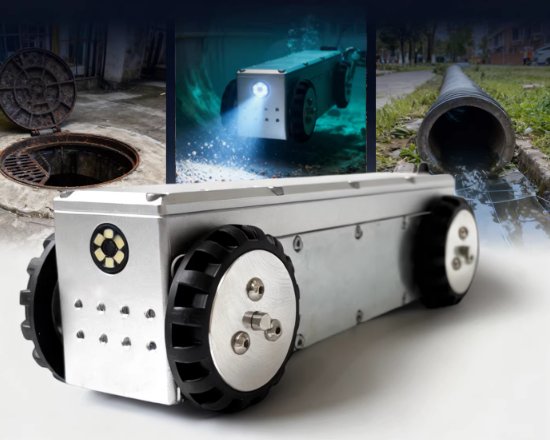

A fully autonomous four-wheel drive inspection crawler for DN100 to DN300 pipelines. Integrated HD camera module, 100m inspection range, 8-hour battery autonomy — controlled from the Android R7 rugged tablet.
Compact Crawler · 4WD · DN100–DN300
DP ROBOT
PIPELINE INSPECTOR
Compact four-wheel drive inspection crawler for professional pipeline surveys from DN100 to DN300. The integrated HD camera module with adjustable LED illumination delivers reliable 1080p footage. 100m inspection range with 8-hour battery autonomy — all controlled from the Android R7 rugged tablet.
DN100 – DN300
100 m Range
8H Battery
4WD
IP Rated
100m
Detection Range
8H
Battery Life
1080p
Camera HD
Technical Specifications
| Dimensions | 300 × 80 × 70 mm |
| Weight | 2.4 kg |
| Pipe Range | DN100 – DN300 |
| Detection Distance | 100 m |
| Drive Motors | 4 (four-wheel drive) |
| Travel Speed | 0.24 m/s |
| Max Climb | 35° |
| Ground Clearance | 8 mm |
| Max Traction | 1.7 kg |
| Camera | Integrated HD module — 1080p / 30 fps |
| Resolution | 1080p / 30 fps |
| Illumination | Adjustable LED |
| Battery | 48V / 10 Ah lithium |
| Battery Life | 8 hours |
| Charge Time | 4 hours |
| Water Resistance | IP rated — immersion to 1 m |
| Controller | Android R7 Tablet |
Construction & Design
ENGINEERING DETAILS

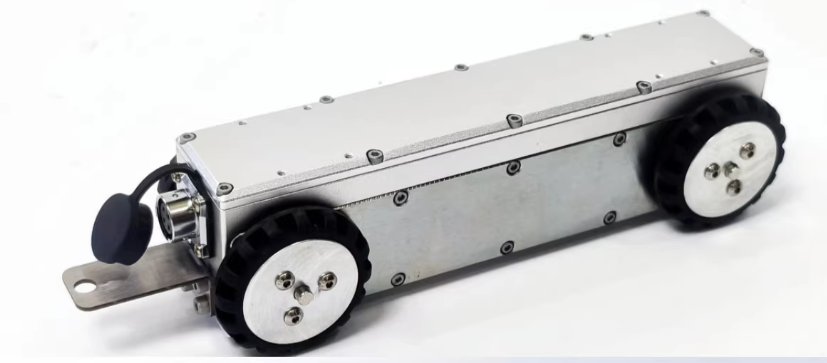

01 · CNC Aluminium Chassis
01
CNC ALUMINIUM ALLOY CHASSIS
The aluminium alloy frame is machined in a single piece by CNC machine tools, guaranteeing structural stability and dimensional precision. This monolithic construction eliminates joints and weak points, even under sustained traction forces in the harshest underground environments.

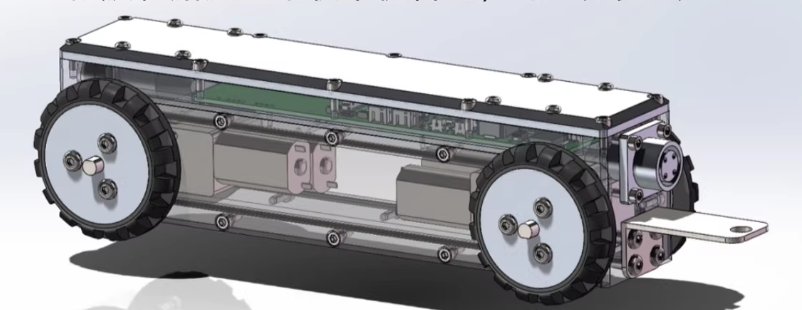

02 · Four Independent Wheel Motors
02
FOUR INDEPENDENT WHEEL MOTORS
The two faces are manufactured in No.45 steel for maximum rigidity and weight balance. Soft rubber tyres protect pipe walls while delivering superior grip on wet, muddy or debris-covered surfaces. Each wheel is driven by its own individual motor — providing powerful performance and flexible differential steering.
03 · 1080P Digital HD Camera
03
1080P DIGITAL HD CAMERA
1080p Full HD digital camera (2 megapixels). The difference between 1080p digital and analogue output is radical — comparable to the gap between internet streaming TV and old colour television. Many production robots still ship with analogue cameras today. Not this one.

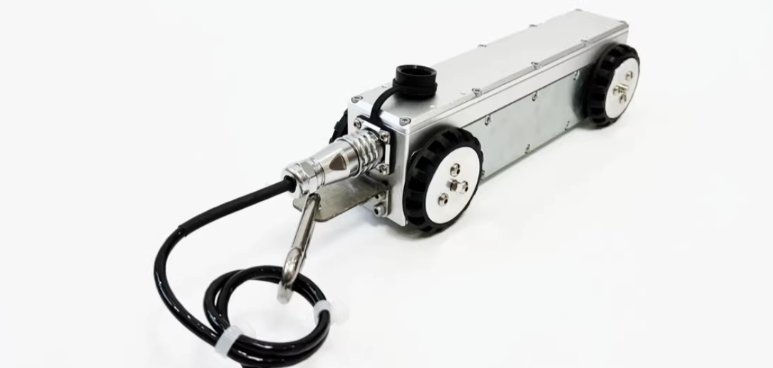

04 · Premium Waterproof Connectors
04
PREMIUM WATERPROOF CONNECTORS
High-quality metal waterproof connectors on all electrical interfaces — rated for immersion up to 1 metre depth. Every connection point is sealed to prevent water, silt and chemical ingress during extended underwater operation.

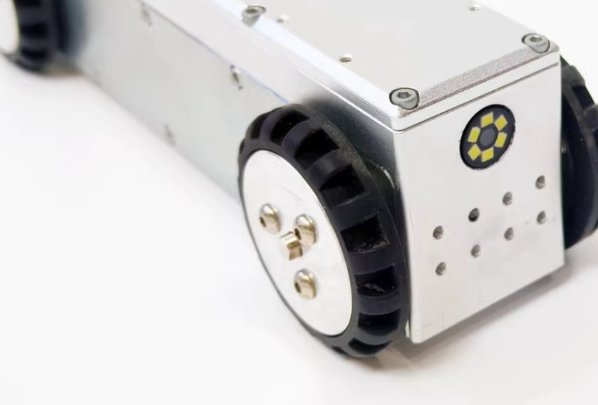

05 · Integrated Adjustable LED Lighting
05
INTEGRATED ADJUSTABLE LED
Built-in adjustable-brightness LED lighting, suitable for pipes up to 300mm diameter. For pipes exceeding 300mm, use the included external torch for full illumination coverage. Automatic exposure adjustment adapts to pipe conditions in real time.

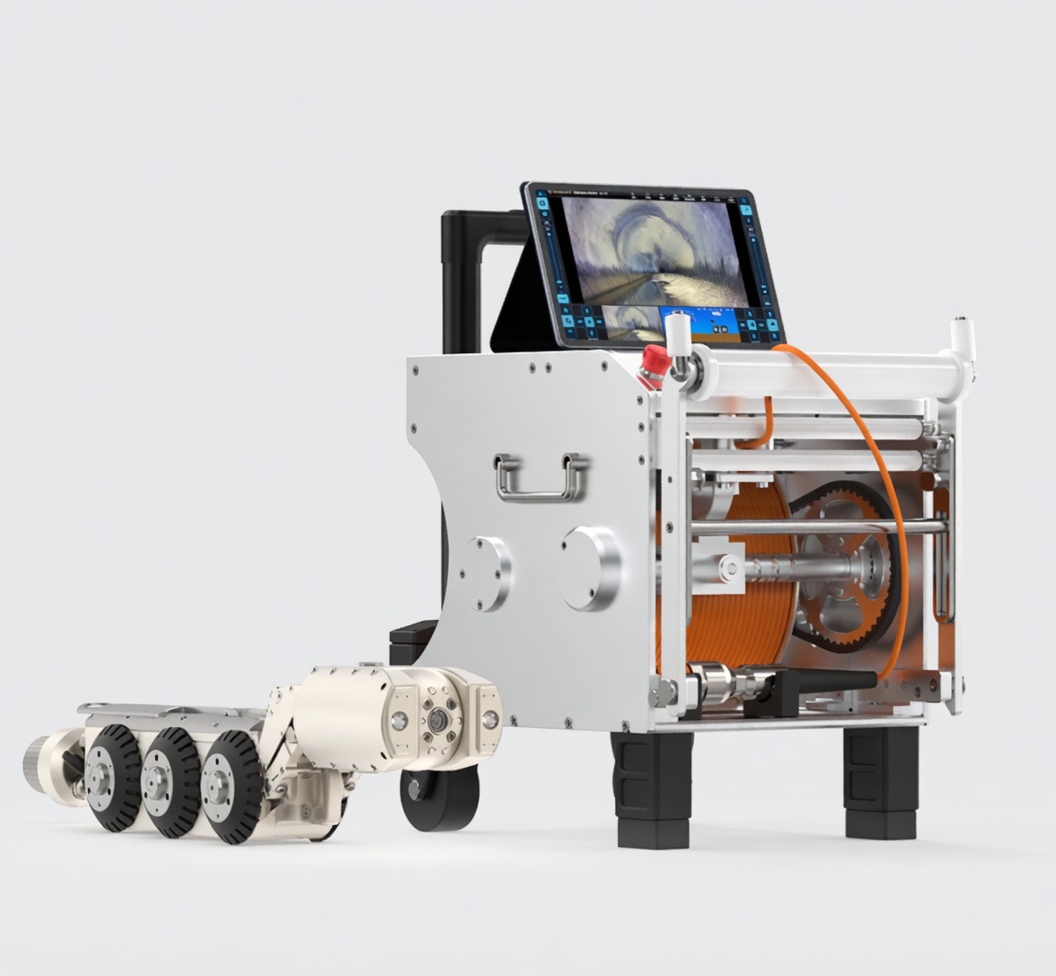

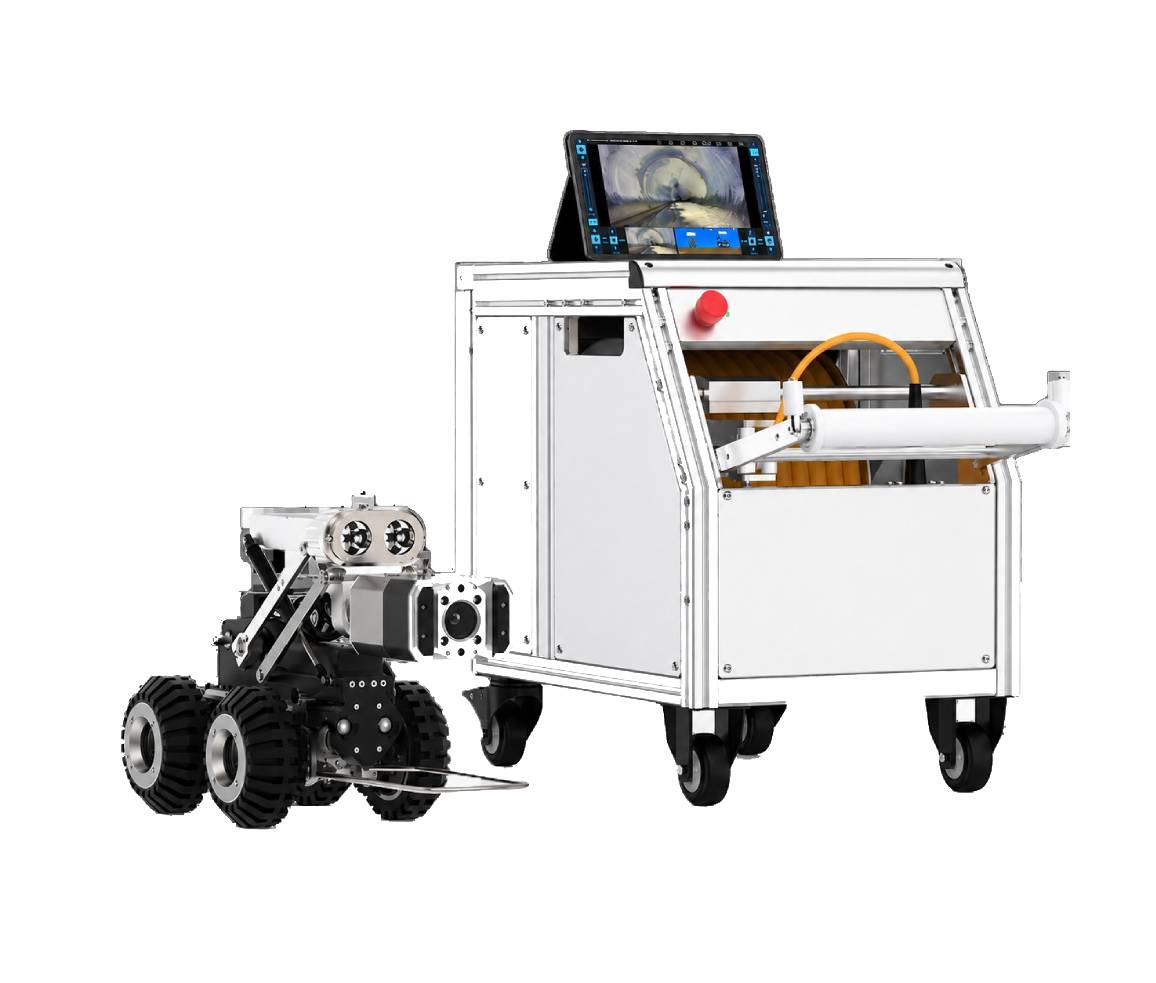

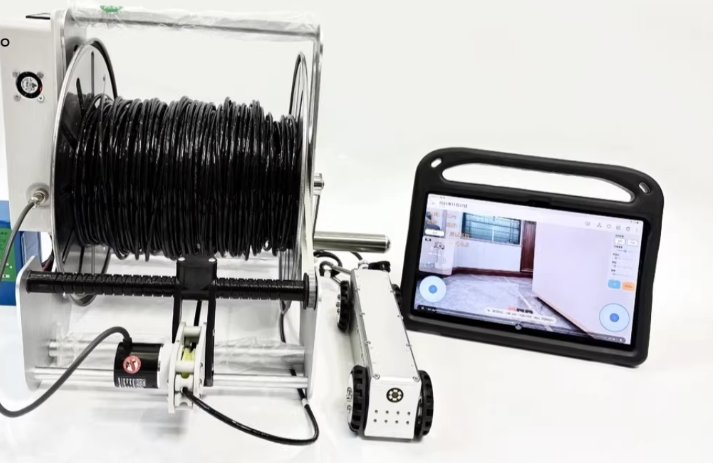

Complete System
EVERYTHING IN ONE PACK
Lightweight aluminium reel, crawler robot and Android R7 tablet — all in a single deployable kit.

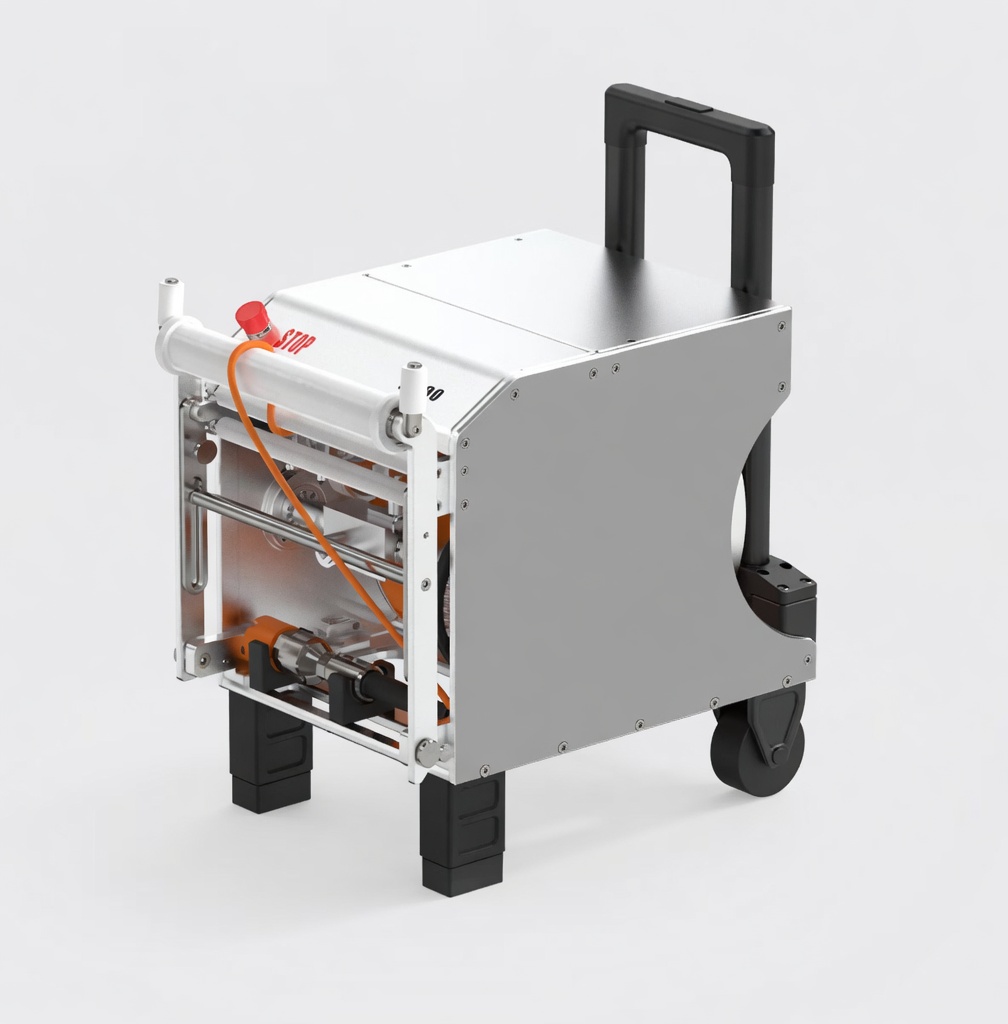

Reel
Aluminium · 1-hand carry
Robot
4WD · 100m · 8H
Tablet R7
Android · live control
In the Field
OUR CLIENTS AT WORK

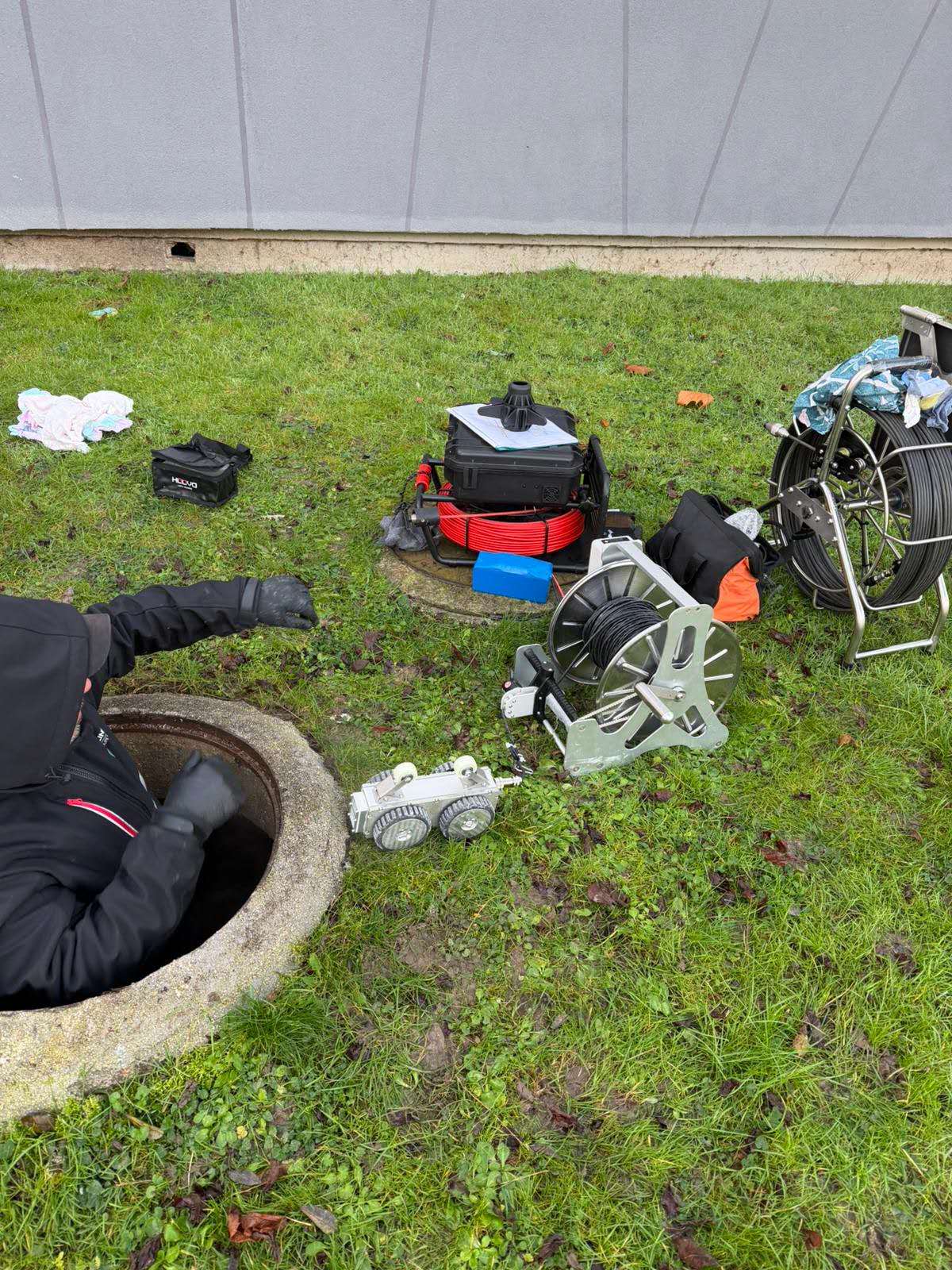

Field deployment · manhole entry · robot lowering

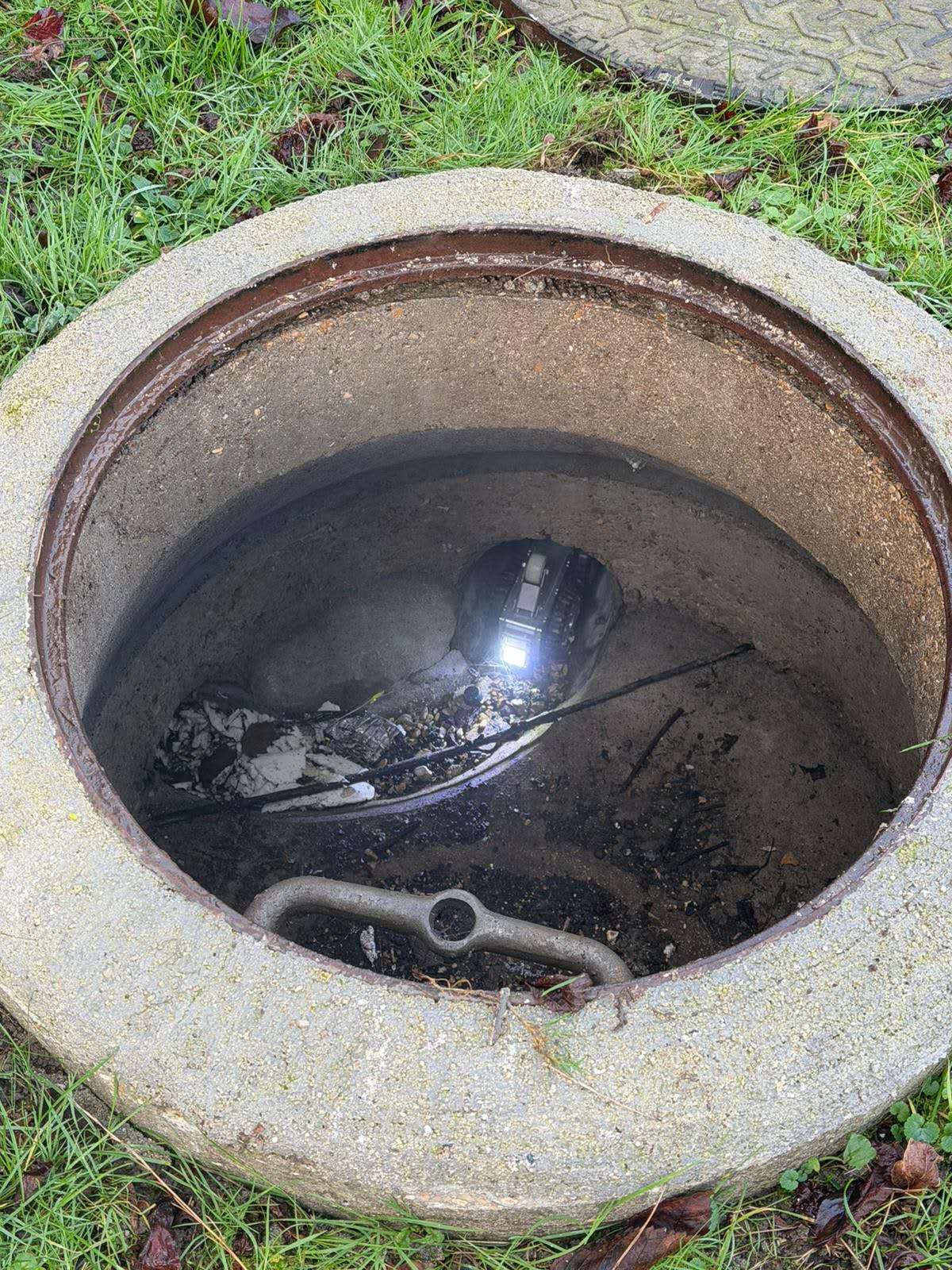

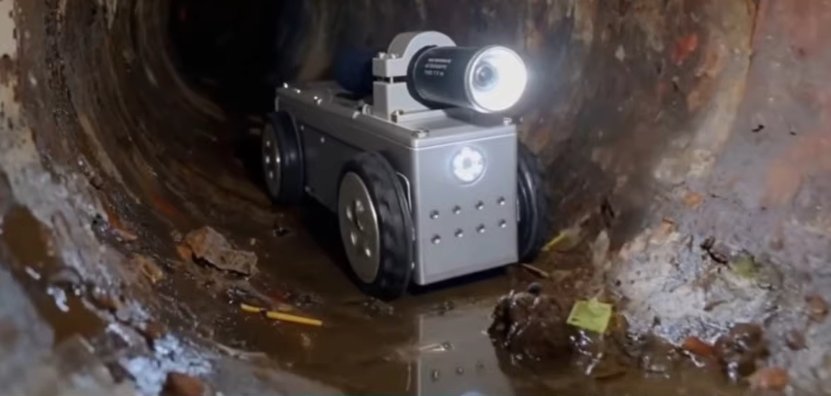

Robot entering DN300 sewer · live feed active
